High Speed 3D Filament Production Line 3D Printing Consumables Drawing Extruder

Name: High Speed 3D Filament Production Line 3D Printing Consumables Drawing Extruder
Brand: Qingyuan IBoss Smart Technology Co., Ltd.
SKU: 3D Filament Production Line
Price: 18858 USD
Availability: InStock

Brand Name:	IBOSS
Model Number:	3D Filament Production Line
MOQ:	1set（A production line）
Price:	$18858
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10000SET

Detail Information

Product Description

Detail Information

Place of Origin:

Gaungdong,china

Document:

Product Brochure PDF

Filament Tolerance:

±0.02mm

Extruder Type:

Single Screw

Warranty:

1 Year

Cooling Method:

Water Cooling

Total Power:

100kW

Filament Diameter:

1.75mm/2.85mm/3.0mm

Raw Material:

PLA/ABS/PETG

Packaging Details:

Wooden crate

Supply Ability:

10000SET

Highlight:

Single Screw 3D Filament Production Line

1.75mm 3D Filament Production Line

3.0mm 3d line filament

Product Description

High Speed 3D Filament Production Line 3D Printing Consumables Drawing Extruder

Product Specifications

Attribute	Value
Filament Tolerance	±0.02mm
Extruder Type	Single Screw
Warranty	1 Year
Cooling Method	Water Cooling
Total Power	100kW
Filament Diameter	1.75mm/2.85mm/3.0mm
Raw Material	PLA/ABS/PETG

3D Printing Filament Extruder Production Line (Single Color)

Application

This production line is designed for manufacturing high-quality 3D printing filaments. Compatible with ABS, PLA, and PETG materials, producing filaments with diameters of 1.75mm and 3mm (±0.03mm tolerance).

Technical Parameters

No	Project	Parameters	Remark
1	Machine center height	1000mm
2	Voltage	380V/3p/50hz	220v/3p/60hz available
3	Color	Green/white/yellow
4	Production capacity	15-25kg/spool	Depending on the material
5	Electric wire	3phase 5 wires,10mm²
6	Machine size	15m Lx1m Wx2.5m H
7	Total Power	45KW
9	Raw materials for machine testing	PLA,ABS,PETG	Supplied by buyer

Key Features

Main motor: Shihlin Motor
Main gearbox: Hard toothed surface gearbox
Frequency converter: INOVANCE
Relay: Omron imported from Japan
Temperature control: Xinjie PLC + Huibang temperature control module
Sink design with three-stage gradual cooling (hot water, warm water, and cold water)
10-inch color human-machine interface control
Closed loop automatic control wire diameter system

Packing List

No	Project	Size	Qty
1	Single-screw extruder	Φ45*28D	1 set
2	Extruder mould for 3D printing filaments	1.75-3mm	1 set

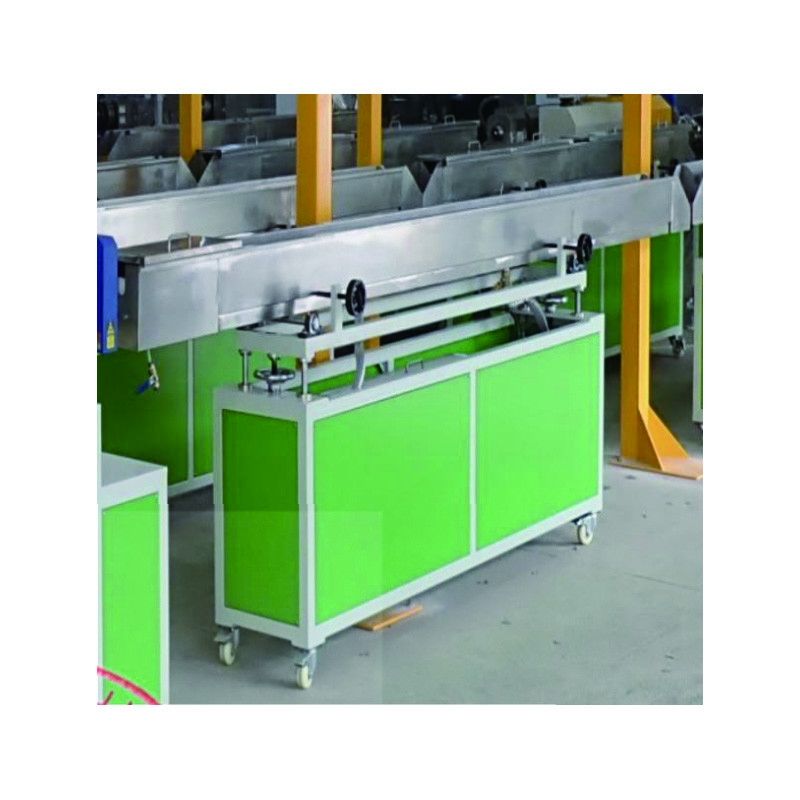

3	Stainless steel water sink for hot water and warm water	3 meters	1 set
4	Four-wheel tractor	4 wheels	1 set
5	8m horizontal tension storage rack	horizontal type	1 set
6	Length gauge		1 set
7	Single axis caliper for wire thickness	TS	1 set
